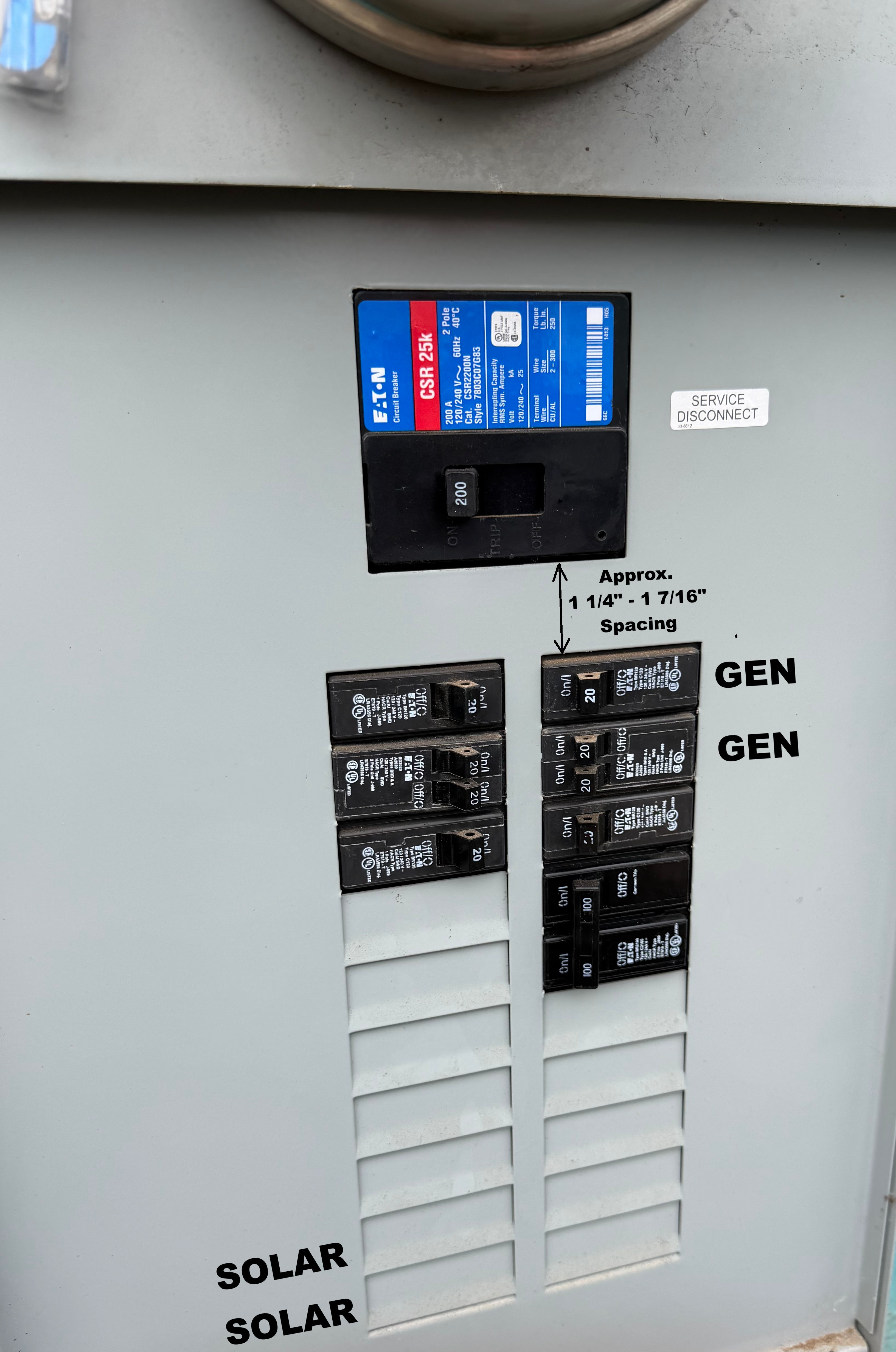

Model BR20SOL Interlock Kit fits Eaton / Cutler Hammer 20-position panels having a 2-pole gen breaker AND a 2-pole solar beaker installed. Vertical spacing between the bottom edge of the main breaker knockout  and the top edge of the gen breaker knockout should be approx. 1 1/4" to 1 7/16" as shown."

Operation is as follows:

Position 1 - Generator breaker is locked out and main and solar breakers may be turned ON or OFF independently of each other. All other breakers are unaffected.

Position 2 - Main breaker AND solar breaker are BOTH locked out and generator breaker may be turned ON or OFF. Again, all other breakers are unaffected.

These are very high-quality kits and provide everything required for the installation including all oil and weather-proof placards, a correct size drill bit, name brand thread locking compound, all hardware  and clear installation instructions.

 All GenSafety Generator Interlock Kits are proudly made in the USA!

 Once you use one of our kits you won't want to use anything else!
